Tungsten Crucible vs. Graphite Crucible
Tungsten crucible and graphite crucible are the two most common containers in high-temperature industries. However, due to fundamental differences in material properties, they differ significantly in applications, performance, and their impact on the melt.
Tungsten crucible, characterized by a high melting point of 3410°C, maintains structural integrity under extreme thermal loads. Compared to graphite crucible, the primary advantage of tungsten is its high purity and metallic inertness. In high-purity metal smelting or sapphire crystal growth, tungsten eliminates the risk of carbon contamination associated with graphite, ensuring the electrical properties and optical clarity of the processed materials. Additionally, the low vapor pressure of tungsten in high-vacuum environments minimizes material volatilization, which preserves system vacuum levels and extends the operational life of thermal field components.
While graphite provides high-temperature resistance, it is susceptible to oxidation or reaction with melts at temperatures above 2000°C, leading to potential carbon inclusion. In contrast, tungsten crucible exhibits high creep resistance and dimensional stability, withstanding repeated high-temperature cycles without structural deformation or collapse. Consequently, tungsten crucible is the optimized choice for applications requiring high purity, such as semiconductor silicon melting, rare earth extraction, and nuclear industrial processes, while graphite crucible is typically utilized for general non-ferrous metal casting of gold, silver, and copper.

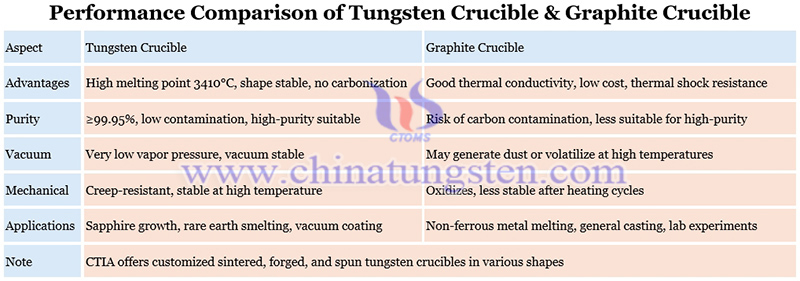

The performance comparison of tungsten crucible and graphite crucible is illustrated below:
Drawing on over 30 years of experience in high-temperature container manufacturing, CTIA GROUP provides advanced tungsten crucible solutions with fully customized services, including high-purity material selection, optimized structural design, and precision fabrication, ensuring exceptional thermal stability, low contamination, and long-term performance for applications such as sapphire growth, semiconductor melting, rare earth smelting, and vacuum coating.
