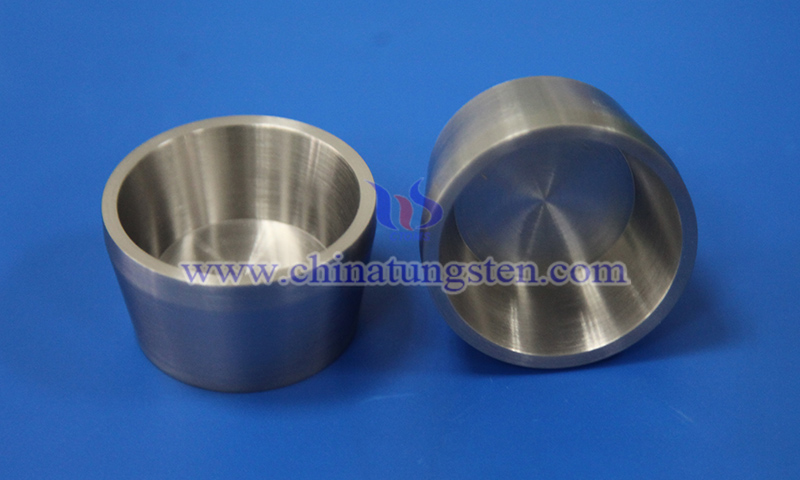

Tungsten Crucible vs. Molybdenum Crucible
Tungsten crucible and molybdenum crucible are both refractory metal crucibles widely applied in vacuum high-temperature environments, inert atmospheres, and high-purity material preparation processes. Although their application fields overlap, significant differences exist in their melting points, vapor pressures, high-temperature stability, and suitable operating conditions, etc.
1. Tungsten Crucible vs. Molybdenum Crucible: Comparison of Material Properties
(1) Tungsten Crucible: Made of high-purity tungsten (≥99.95% W), featuring a melting point of about 3410°C (highest among metals), minimal vapor pressure, and superior grain stability at elevated temperatures.
(2) Molybdenum Crucible: Made of high-purity molybdenum (≥99.95% Mo) with a melting point of about 2623°C, showing good strength and stability under medium to high temperatures but performance declines more rapidly at higher temperatures.
2. Tungsten Crucible vs. Molybdenum Crucible: Comparison of High-Temperature Range and Thermal Stability
(1) Tungsten Crucible: Capable of long-term operation above 2000°C, making it suitable for ultra-high temperature applications and complex thermal field environments.
(2) Molybdenum Crucible: Generally applicable within a temperature range of 1600–2000°C. Beyond this range, phenomena such as creep and grain growth become significantly more pronounced.
3. Tungsten Crucible vs. Molybdenum Crucible: Comparison of Vacuum Performance and Material Purity
(1) Tungsten Crucible: Low vapor pressure under high vacuum minimizes contamination, suitable for ultra-pure processes.
(2) Molybdenum Crucible: Stable in vacuum, but ultra-high purity processes need stricter control.
4. Tungsten Crucible vs. Molybdenum Crucible: Comparison of Structural Stability and Creep Resistance
(1) Tungsten Crucible: Maintains a low creep rate under high-temperature loads, ensuring greater structural stability during long-term use.
(2) Molybdenum Crucible: Stable under medium-to-high temperature conditions, but possesses slightly lower deformation control capabilities during prolonged high-temperature cycling.
5. Tungsten Crucible vs. Molybdenum Crucible: Comparison of Applications
(1) Tungsten Crucible: Frequently used in sapphire crystal growth, semiconductor crystal growth, monocrystalline silicon melting, electron beam evaporation, ultra-high vacuum coating, aerospace superalloy preparation, and nuclear experiments, suitable for ultra-high-temperature and high-cleanliness scenarios.
(2) Molybdenum Crucible: Suitable for medium-to-high temperature vacuum heat treatment, conventional metal melting, electronic material processing, and general high-temperature experimental environments. Performance comparison of tungsten crucible and molybdenum crucible is shown as the picture bellow:
Drawing on over 30 years of manufacturing expertise, CTIA GROUP delivers optimized tungsten crucible and molybdenum crucible solutions through comprehensive, end-to-end customized services. These solutions encompass material selection, structural design, and precision fabrication, engineered to meet the specific vacuum and thermal field requirements.
