Tungsten Electrode in Stage Lights

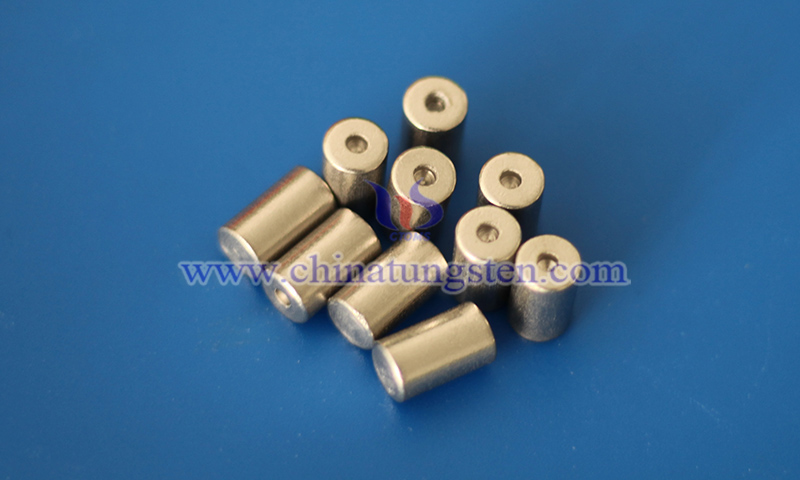

Tungsten electrode in stage lights refers to the barium tungsten electrode used as a thermionic emission cathode in High-Intensity Discharge (HID) lamps. It is designed to meet the core requirements of high brightness, high-frequency switching, and long service life in film and television lighting, stage performances, and large-scale event lighting. Using high-purity tungsten powder as the substrate material, the barium tungsten electrode is processed via powder metallurgy to create a porous tungsten skeleton with interconnected pore structures. Active barium compounds are then infiltrated into the pores using an impregnation method, forming a stable composite electrode structure after high-temperature decomposition and sintering.
1. Advantages of CTIA’s Tungsten Electrodes for Stage Lights
(1) Extremely Low Work Function
Pure tungsten has a work function of approximately 4.5 eV. The active barium layer on the surface of barium tungsten electrode reduces the work function to 1.6–2.0 eV, significantly improving electron emission efficiency.
(2) High Emission Current Density
Pulse emission current density can reach 10–20 A/cm2, far exceeding that of conventional tungsten electrodes and ensuring high-intensity light output.
(3) Fast Ignition Performance
Reliable ignition can be achieved at voltages below 90% of the rated supply voltage, providing rapid lamp startup without missed or repeated flashes.
(4) Low Operating Temperature
The operating temperature is approximately 1000–1150°C, significantly lower than that of pure tungsten cathodes, reducing thermal load and evaporation loss.
(5) Long Service Life
Service life can exceed 5 million switching cycles under high-frequency strobe conditions, while luminous efficiency is approximately 15% higher than that of conventional electrodes.
(6) Safe and Environmentally Friendly
Free from radioactive elements, providing safe and reliable operation without radiation hazards.
2. Specifications and Technical Parameters of CTIA’s Tungsten Electrodes in Stage Lights

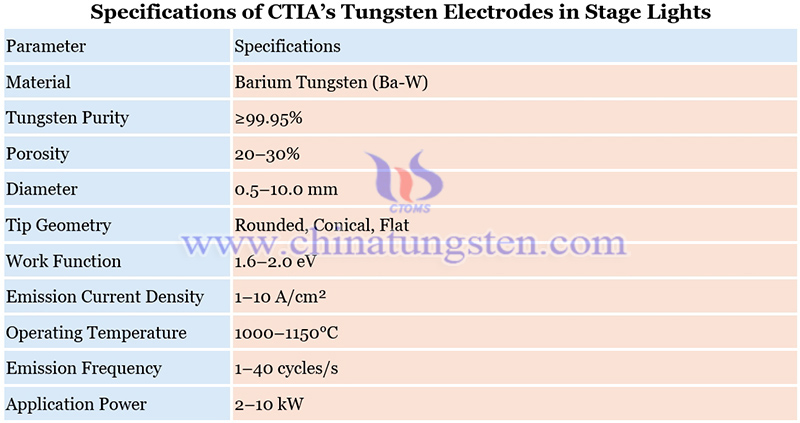

The specification and technical parameter of CTIA’s tungsten electrode in stage lights are detailed in the picture below:
CTIA GROUP (CTIA) has specialized in tungsten electrode manufacturing for more than 30 years. With comprehensive capabilities in tungsten powder production, powder metallurgy forming, high-temperature sintering, and precision machining, CTIA can consistently supply barium tungsten electrodes, pure tungsten electrodes, ceriated tungsten electrodes, thoriated tungsten electrodes, lanthanated tungsten electrodes, zirconiated tungsten electrodes, yttriated tungsten electrodes, and composite rare earth tungsten electrodes. Customized diameters, lengths, and tip geometries are available to provide high-stability and long-life electrode solutions for stage lighting, film production, and specialized lighting equipment.
