What’s Ground Tungsten Electrode?
1. What’s Ground Tungsten Electrode?
Ground tungsten electrode refers to a tungsten-based electrode whose tip is precisely ground into a regular conical or pointed geometry using specialized grinding processes. The electrode is widely used in Tungsten Inert Gas Welding (TIG welding),or Gas Tungsten Arc Welding (GTAW). Optimized tip geometry improves arc stability and energy concentration.
2. Advantages of CTIA’s Ground Tungsten Electrode
CTIA’s ground tungsten electrode offers significantly improved arc concentration and ignition stability. The conical tip effectively confines the electron emission zone, resulting in a more stable and directional arc while reducing arc wandering and dispersion. Under the same welding current, it enables more precise heat input control, producing more uniform weld seams, less spatter, and extended electrode service life.
3. Applications of CTIA’s Ground Tungsten Electrode
CTIA’s ground tungsten electrode is widely used for high-precision welding of stainless steel, carbon steel, titanium alloys, and nickel-based alloys. It is especially suitable for automated welding, thin-wall structures, and precision manufacturing applications, where high stability and repeatability help reduce welding defects.
4. Selection of CTIA’s Ground Tungsten Electrode

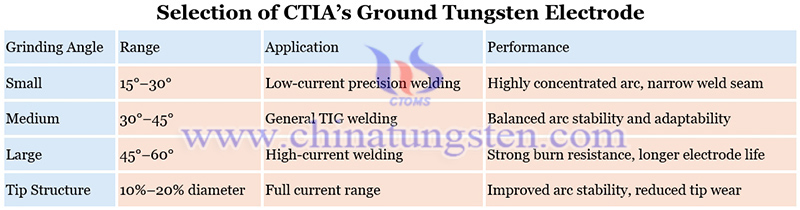

Selection of CTIA’s Ground Tungsten Electrode is shown in the picture as below:
5. Specifications of CTIA’s Ground Tungsten Electrode
(1) Diameter: 0.5–6.4 mm
(2) Grinding Angle: 15°–60°
(3) Tip Structure: conical, micro flat
(4) Note: CTIA provides customized ground tungsten electrode solutions
With over 30 years of tungsten electrode manufacturing experience, CTIA GROUP delivers customized solutions based on welding current ranges and application scenarios. Grinding angle, tip flat ratio, and surface precision can all be precisely controlled, ensuring stable and reliable performance for demanding TIG welding applications.
