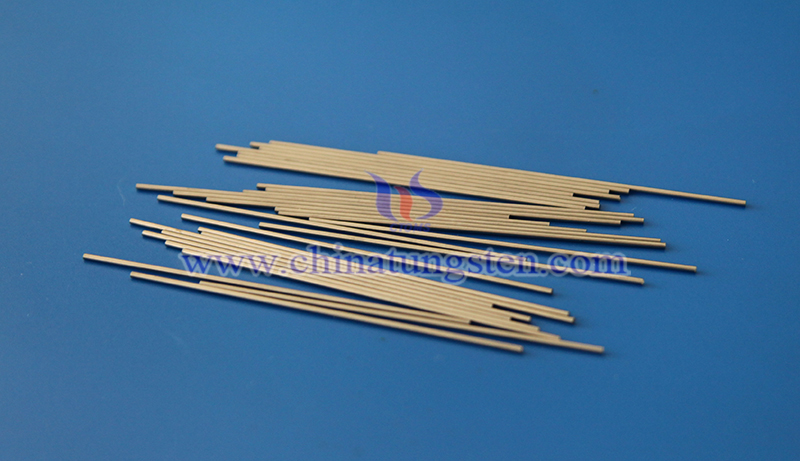

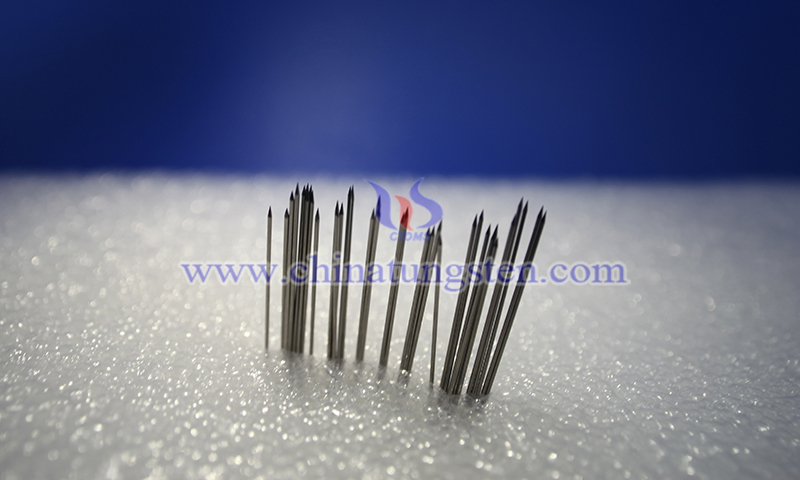

CTIA Tungsten Needle Applications
CTIA tungsten needle combines high melting point (~3410 ℃), high elastic modulus (~400 GPa), high tensile strength (~1000 MPa), stable resistivity (~5.6×10?? Ω·m), and ultra-low vapor pressure, maintaining tip geometry and electrical performance under high temperature, high vacuum, high current density, and nanoscale operation. These properties make it critical components in precision machining, electronic testing, micro-nano manufacturing, microscopy, and biomedical fields. CTIA GROUP has established a stable production system for high-purity tungsten, controlling grain structure and tip geometry consistency, ensuring long-term stability and repeatability in industrial and research applications.
CTIA tungsten needle maintains tip stability and dimensional precision under high-frequency pulsed discharge and localized high-temperature conditions. High melting point and low thermal diffusion prevent erosion or deformation during Electrical Discharge Machining (EDM), Micro EDM, fine hole drilling, wire threading, micro-hole fabrication, micro-mold machining, and processing of hard alloys or ceramics. CTIA GROUP ensures tip consistency with ≥99.95% pure tungsten and refined grains.
2. CTIA Tungsten Needle in Arc WeldingCTIA tungsten needle withstands high temperatures, high energy density, and continuous thermal input in arc welding, maintaining stable electrode shape and conductivity. It resists morphology changes under arc exposure, ensuring concentrated and stable arcs. High conductivity allows uniform current transfer, improving welding consistency. Applications include Tungsten Inert Gas (TIG) Welding, Plasma Arc Welding (PAW), micro-welding, precision welding, and automated welding. CTIA GROUP optimizes tip structure according to process requirements and enhances service life.
3. CTIA Tungsten Needle in Test Probes and Electronic TestingCTIA tungsten needle provides stable contact and reliable signal transmission in electronic testing, suitable for microcurrent and high-frequency signals requiring consistent electrical performance. It reduces errors caused by unstable contact or tip wear. Applications include Four-Point Probe, Radio Frequency (RF) testing, high-frequency testing, Automated Test Equipment (ATE), Printed Circuit Board (PCB) testing, In-Circuit Test (ICT), and Functional Circuit Test (FCT). CTIA GROUP optimizes size and structural parameters to improve testing stability and offers application guidance.
4. CTIA Tungsten Needle in Semiconductor Testing and Failure AnalysisIn micro- and nanoscale environments, CTIA tungsten needle achieves high-precision contact with excellent repeatability and cleanliness. High-purity tungsten reduces contamination effects, and tips can be processed to nanoscale to meet high-precision electrical testing requirements. Applications include probe cards, nano-probe systems, wafer testing, Failure Analysis (FA), electrical parameter testing, and contact resistance measurement. CTIA GROUP ensures tip consistency through crystal orientation control and precision shaping, suitable for different process nodes.
5. CTIA Tungsten Needle in Electronics and Precision ElectronicsCTIA tungsten needle maintains rigidity and stable conductivity under fine dimensions, enabling precise positioning and reliable electrical contact. They resist deformation and unstable contact in microstructure operations. Applications include electronics assembly, precision contacts, sensor touchpoints, MEMS testing (Micro-Electro-Mechanical Systems), microelectronics positioning, microstructure assembly, nano-device testing, and connector testing. CTIA GROUP ensures geometric accuracy and electrical performance consistency through precision processing and quality control.
CTIA tungsten needle maintains stable emission performance and tip morphology under high vacuum and high field strength, directly affecting electron beam stability and imaging resolution. It resists instability or morphology changes that would affect performance. Applications include Scanning Electron Microscope (SEM), Transmission Electron Microscope (TEM), Field Emission Gun (FEG), Electron Beam Lithography (EBL), Electron Beam Induced Deposition (EBID), and Electron Beam Welding (EBW). CTIA GROUP provides stable electron emission solutions through high-purity materials and tip structure control.
7. CTIA Tungsten Needle in Focused Ion Beam and Micro/Nano FabricationCTIA tungsten needle shows excellent resistance to ion bombardment and maintain morphology stability under ion beam exposure, preventing etching or material loss, while high purity reduces contamination risk. Applications include Focused Ion Beam (FIB), Ion Beam Induced Deposition (IBID), Ion Beam Induced Etching (IBIE), nano-fabrication, and integrated circuit repair. CTIA GROUP supports high-precision micro-nano manufacturing through consistency control and precision processing.
8. CTIA Tungsten Needle in Vacuum and High-Temperature EnvironmentsCTIA tungsten needle maintains stable structure and performance under high temperature and vacuum. Ultra-high melting point and extremely low vapor pressure prevent evaporation or deformation. It also resists plasma erosion, suitable for long-term operation in vacuum electronic devices, electron sources, particle sources, plasma environments, and high-temperature electrodes. CTIA GROUP provides solutions adapted to different working conditions through material and size optimization.
9. CTIA Tungsten Needle in Scanning Probe Microscopy and NanocharacterizationCTIA tungsten needle allows tip processing with extremely small radius and maintains morphology stability during use, meeting nanoscale or atomic-scale detection requirements and ensuring repeatability. Applications include Scanning Tunneling Microscopy (STM), Atomic Force Microscopy (AFM), Field Ion Microscopy (FIM), Scanning Near-field Optical Microscopy (SNOM), nano-probe testing, and surface electrical measurements. CTIA GROUP optimizes tip processing to provide reliable tools for high-resolution characterization.
10. CTIA Tungsten Needle in Biomedical and Neural EngineeringCTIA tungsten needle maintains high rigidity and stable conductivity under fine dimensions, enabling precise puncture and stable signal acquisition during micro-manipulation. Applications include neural electrodes, neural signal recording, single-cell puncture, microinjection, Electromyography (EMG), Brain-Computer Interface (BCI), and microelectrode arrays. CTIA GROUP offers multiple specifications and application support to meet research and engineering needs.
11. CTIA Tungsten Needle in Special ApplicationsCTIA tungsten needle maintains stable conductivity and structural integrity under high-temperature and strong electric field conditions, resisting oxidation and performance degradation. Applications include ignition needles, burner electrodes, electrostatic discharge needles, anti-static electrodes, and aerospace electrodes. CTIA GROUP supports customized solutions for multiple scenarios, meeting diverse industrial applications.
