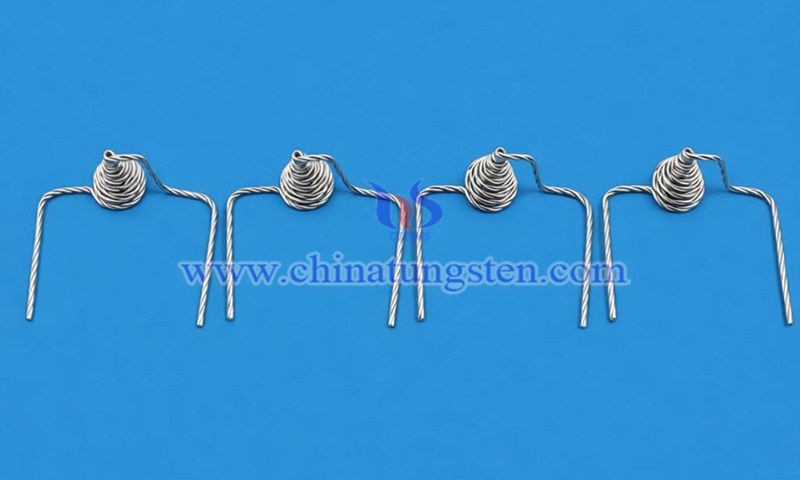

Conical Tungsten Heater
What’s Conical Tungsten Heater?
Conical tungsten heater is a high-temperature resistance heating element manufactured from high-purity tungsten wire wound into a tapered conical configuration for metal evaporation and thermal field control within vacuum coating systems.
Characteristics of CTIA’s Conical Tungsten Heater
(1) Conical heat concentration: Heat concentrates from the base toward the top, creating a stable high-temperature core zone.
(2) High evaporation adaptability: Suited for stable evaporation of granular or bulk metallic materials.
(3) High-temperature stability: With a melting point around 3,422°C, tungsten maintains structural integrity at temperatures exceeding 2,000°C.
(4) Low contamination: Extremely low vapor pressure under high vacuum minimizes material volatilization contamination.
(5) Stable operation: Consistent central hot zone makes it ideal for continuous evaporation operating conditions.
(6) Thermal stress resistance: Tapered design minimizes localized stress concentration, lowering deformation risks.
Specifications of CTIA’s Conical Tungsten Heater
(1) Material: W≥ 99.95%
(2) Wire diameter: 0.2–1.2 mm, customizable
(3) Cone angle: 30°–90°, customizable
(4) Top diameter: 10–80 mm, customizable
(5) Bottom diameter: 20–150 mm, customizable
Applications of CTIA’s Conical Tungsten Heater
(1) Vacuum evaporation coating.
(2) High-reflection and anti-reflective film deposition in optical thin-film preparation.
(3) Housing metallization and decorative coating within consumer electronics.
(4) Deposition of functional thin films and electrode materials in the semiconductor field.
(5) Laboratory vacuum evaporation and material thermophysical property research.
Leveraging over three decades of manufacturing expertise in tungsten heater, CTIA GROUP delivers custom-engineered designs tailored to specific application scenarios and operating temperatures. CTIA systematically optimizes cone angles, wire diameters, and geometric profiles, integrating specialized cleaning and polishing to maximize process efficiency and ensure dependable operation within high-temperature vacuum environments.
