CTIA's Tungsten Heater in X-Ray Tube

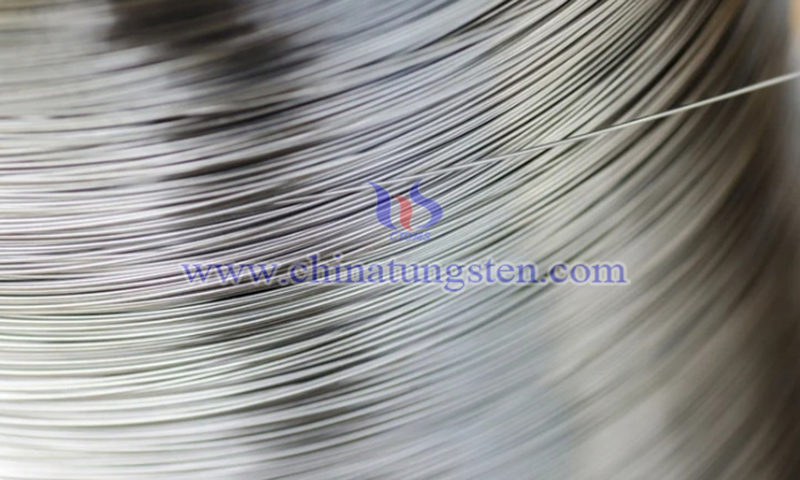

CTIA’s tungsten heater is a resistive heating component used in X-ray tube cathode systems to heat the thermionic cathode. It provides a stable high temperature heat source for thermionic emission, generating a high energy electron beam that strikes the target to produce X-rays. The tungsten heating element is fabricated from high purity tungsten wire through precision coiling, forming, and ultra-high temperature vacuum degassing, and is widely used in medical imaging, industrial inspection, and scientific testing.
Working Principle of Tungsten Heater
The tungsten heater generates Joule heat when energized, raising the cathode to the temperature required for thermionic emission. Electrons overcome the work function under high vacuum conditions and are accelerated into a focused electron beam. The beam impacts the target material to generate X-rays for radiation output.
Characteristics of CTIA’s Tungsten Heater in X-Ray Tube
(1) High melting point and shape stability: Tungsten has a melting point of 3410°C, maintaining structural integrity at high temperatures and preventing beam deviation.
(2) High vacuum compatibility: Extremely low vapor pressure reduces volatilization and helps maintain vacuum stability and radiation purity.
(3) Stable electrical resistance: Precise control of wire diameter and coiling structure ensures consistent resistance for accurate current regulation.
(4) Strong thermal fatigue resistance: Optimized microstructure improves resistance to repeated thermal cycling, extending service life.
Applications of CTIA’s Tungsten Heater
(1) X-ray tubes: Provides cathode heating for thermionic emission and stable X-ray generation.
(2) Medical imaging systems: Supports electron source heating for diagnostic imaging of human tissues and structures.
(3) Industrial non-destructive testing: Enables stable electron beam generation for inspection of welds, castings, and internal defects.
(4) Security scanning systems: Provides cathode heating for X-ray imaging of luggage and cargo.
(5) Scientific X-ray systems: Supports electron source control and beam regulation for material analysis and research.

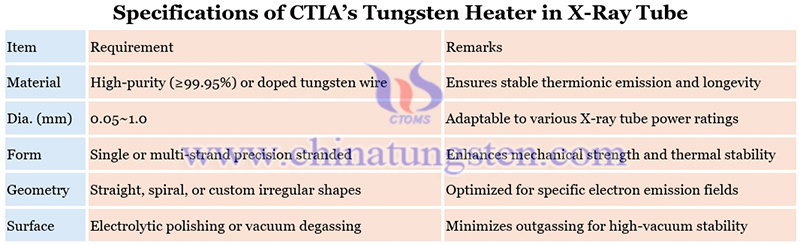

Specifications of CTIA’s Tungsten Heater in X-Ray Tube
Specifications of CTIA’s tungsten heater in x-ray tube are as follows:
CTIA GROUP utilizes over 30 years of expertise in refractory metallurgy to deliver engineered solutions for tungsten heater in X-ray Tube. Systematic optimization of wire diameter, geometry, and thermal zone configuration is precisely calibrated to specific tube architecture, operational voltage, and cathode emission profile. Integration of advanced surface treatments such as electrolytic polishing and high-vacuum degassing ensures seamless end to end customization from metallurgical selection to precision manufacturing.
