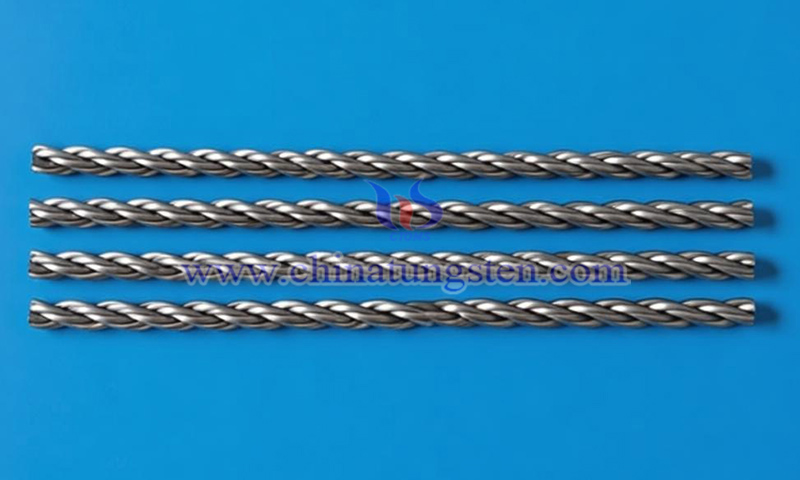

Four-Strand Twisted Tungsten Heater
Four-strand twisted tungsten heater is a tungsten heating element formed by precision twisting four high-purity tungsten wires or doped tungsten wires. It can be further bent into spiral, M-shaped, or hump-shaped configurations.
Through its four-strand twisted structure, CTIA’s tungsten heater offers the following features:
(1) Higher structural strength: Compared with single-strand or double-strand structures, the four-strand twisted design provides higher tensile strength and improved anti-sag capability.
(2) More uniform current distribution: Multi-strand conductive paths help distribute current density more evenly and reduce localized hotspot risks.
(3) Better thermal stability: The twisted structure provides flexibility, which helps relieve thermal stress caused by expansion.
(4) Stronger material loading capacity: It is suitable for carrying larger amounts or larger-sized evaporation materials.
The four-strand twisted tungsten heater maintains good structural stability under high-temperature vacuum environments and is suitable for long-duration or high-load operating conditions.
As a typical evaporation source element, CTIA tungsten heater is widely used in:
(1) Vacuum coating: Used for evaporation of metals such as aluminum and chromium, ensuring stable evaporation performance.
(2) Optics and display: Used for optical thin films and display device coating, improving film uniformity.
(3) Electronic manufacturing: Used for metal electrode or functional thin-film deposition.
(4) High-temperature heating: Used in vacuum furnaces or localized high-temperature heating applications.
CTIA GROUP, with over 30 years of expertise in tungsten heater manufacturing, provides advanced customization and precision manufacturing solutions. Based on application requirements and installation space constraints, CTIA optimizes key parameters including tungsten wire diameter, twisting pitch, overall length, bending angle, and support positions, while integrating surface treatments such as electrolytic polishing and alkaline cleaning, delivering full-process customized solutions from material selection to manufacturing.
